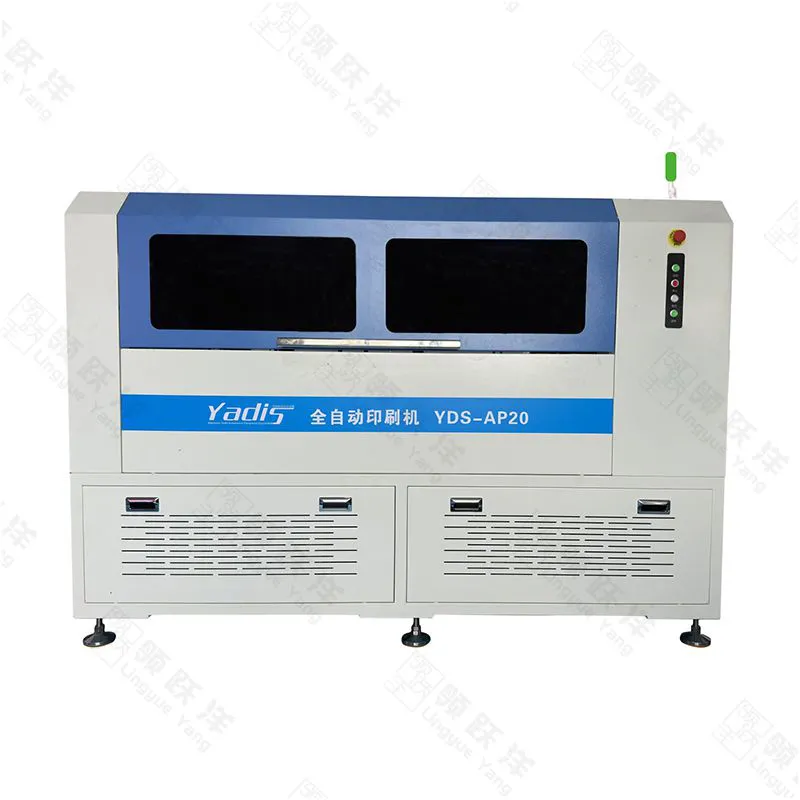

AP20 Printing Press

Features of SMT Printer Machine

1, Mainly for LED coil tin printing, support 100-270(mm) width (no wire) Light with FPCB.

2, Using the platform calibration system independently developed by Addis company, simple operation, easy to learn, short line change time.

3, High positioning accuracy, repeated positioning accuracy ±0.02mm; Printing accuracy ±0.05mm, support glue printing. Fully automatic control, production efficiency

5, High-definition vision, platform X/Y automatic correction.

6, Vacuum auxiliary FPCB fixed positioning system, PCB positioning is convenient and accurate.

7, Standard stainless steel scraper, unique design, improve blade life.

8, Industrial computer, Win7,Win10 Chinese (English) version operating system.

SMT Printer Machine is mainly used to accurately print solder paste onto the PCB (Printed Circuit Board) of the light strip during the production process. This process is one of the key steps in manufacturing LED light strips, ensuring that the LEDs and other electronic components can be accurately and firmly soldered onto the PCB.

The specific steps are as follows:

Preparation phase: First, you need to prepare the designed circuit diagram and the corresponding stencil. The stencil is made according to the design of the circuit board, and has small holes corresponding to the pads on the PCB for precise control of the distribution of solder paste.

Solder paste printing: The SMT printer uses a scraper to print the right amount of solder paste onto the pads of the PCB through the holes on the stencil. This process requires a high degree of precision to ensure that the solder paste is only applied to the specified location and the thickness is uniform.

Component assembly: The PCB with printed solder paste will be fed into the Pick and Place Machine, which will automatically place the LEDs and other required electronic components accurately on the pads coated with solder paste.

Reflow soldering: The last step is to pass the PCB with assembled electronic components through the reflow soldering oven, heat it under a specific temperature curve control, melt the solder paste and cool it to solidify, so as to achieve electrical connection and mechanical fixation between the components and the PCB.

In this way, the SMT printer ensures that the manufacturing of LED light strips is efficient, high-quality and consistent, laying a solid foundation for subsequent assembly and use.

Advantages of SMT Stencil Printers

Highly professional: Designed specifically for the LED industry, it is particularly suitable for the production of wireless light strips, meeting specific market needs.

Easy operation and efficient line change: The innovative platform calibration system is adopted to simplify the operation process, shorten the line change time, and improve the flexibility and efficiency of the production line.

Excellent precision and consistency: High positioning and printing accuracy ensure accurate component placement, reduce errors, and ensure the consistency and stability of product quality.

Advanced automation function: With fully automatic control, high-definition visual system and automatic correction function, it effectively improves production efficiency and product qualification rate.

Stable design and durable components: The use of vacuum-assisted fixing system and durable stainless steel scraper improves the stability and durability of equipment operation and reduces maintenance requirements.

Modern and user-friendly operating system: Supports popular Windows operating systems and is available in multiple languages for easy integration and operation, enhancing the user experience.

The stencil printer features surface mount technology (SMT) solder paste printing and continues to lead the way in performance and excellence in printed electronic materials, including SMT solder paste. SMT stencil printers are the perfect addition to any assembly line as they bring ease and efficiency. These solder stencil printers help you place solder paste precisely where you want it on a printed circuit board without mess or hassle.

Ling Yueyang provides LED SMT machines produced by industry-leading equipment manufacturers. Currently, we have production bases in Shenzhen, Huizhou and Jiangmen, Guangdong, China. We provide high-quality equipment procurement and equipment after-sales service for domestic and foreign customers. We adhere to the corporate philosophy of high-quality product technology, high-standard delivery standards and customer quality service experience as the first priority. Welcome your consultation!
